Radio components calculator

Description of Radio components calculator

A set of tools for the calculation of radio electronics

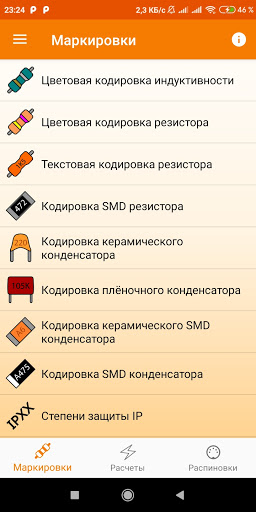

Color and text marking of resistors;
Marking of SMD resistors, including the EIA-96 standard;

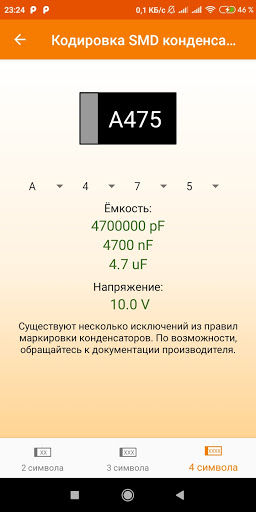

Marking of SMD capacitors;
Marking of ceramic and film capacitors;
IP protection marking;
Color marking of inductors;

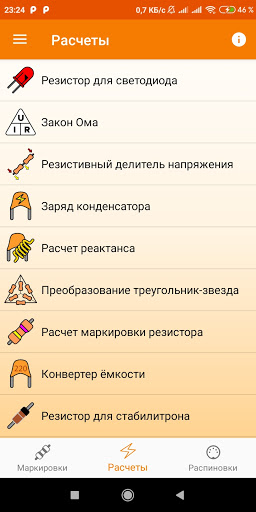

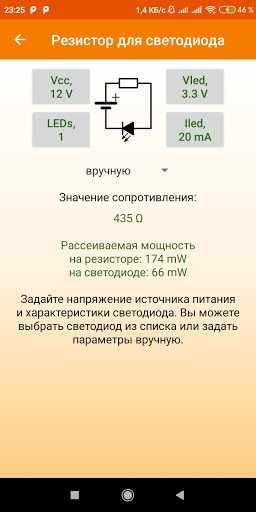

Calculation of the resistor for the LED;

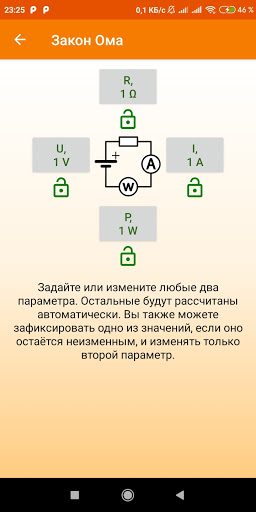

Calculation of Ohm's Law;
Parallel and serial connection calculator;
Calculation of the voltage divider;
Capacitor charge calculator;
Calculation of reactance;
Calculation of the marking of the resistor;
Calculation of the marking of the capacitor;
"Star-triange" transformation of the resistors;
Calculation of a resistor for a Zener diode;

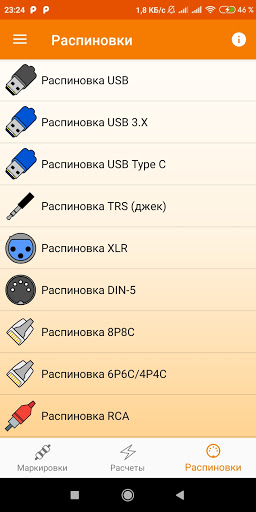

USB pinout;
USB Type C pinout;
TRS pinout;
XLR pinout;
DIN5 pinout;
xPxC pinout;
RCA pinout;
S-Video pinout;
SCART pinout;
ATX/PC pinout;
VGA pinout;
LCD pinout.
