: FIR FILTER DEMO

for Android

4.2 | 5,000+ Installs

Rajesh Ghongade

Download APK（173.0KB）

Description of FIR FILTER DEMO

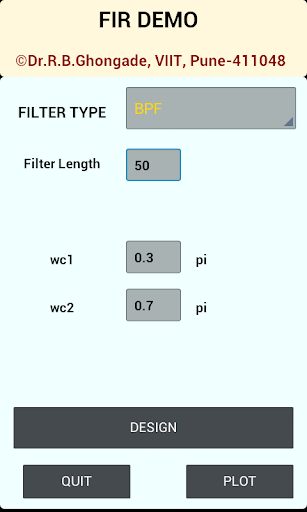

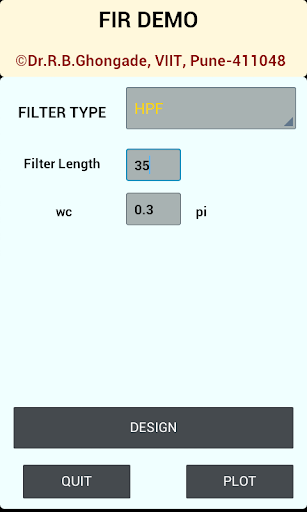

This demo illustrates the effect of filter length of a FIR filter assuming rectangular window.

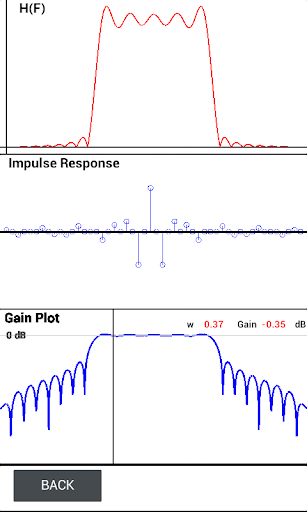

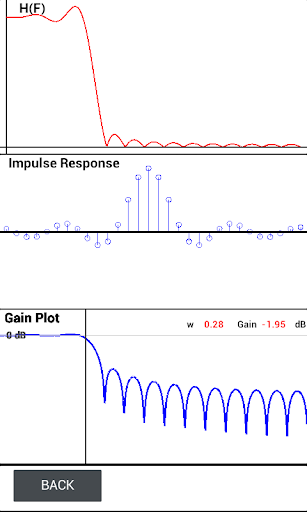

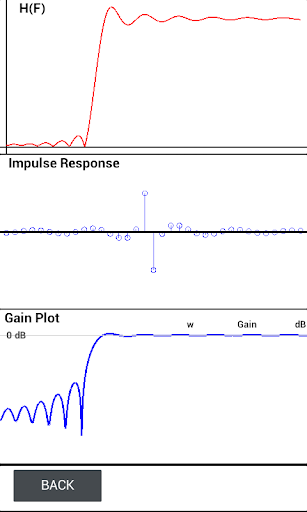

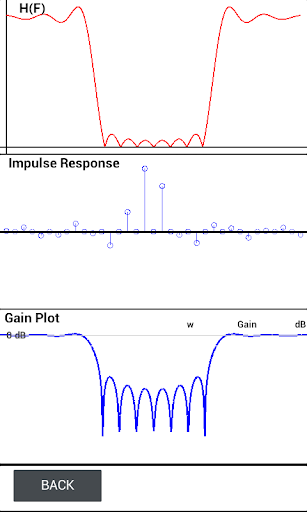

The magnitude , impulse response and gain plots are created. Gain plot can be examined with a cursor.
Normalized frequency is considered for the design.
Currently supports only 480X800 screen size.
