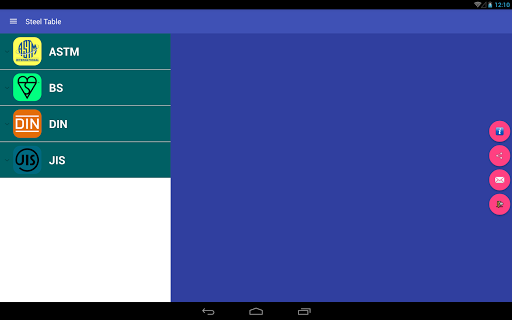

This application is dimension of standard steel size in ASTM, BS and JIS. It has many shape as below.
ASTM Steel:
I-Section

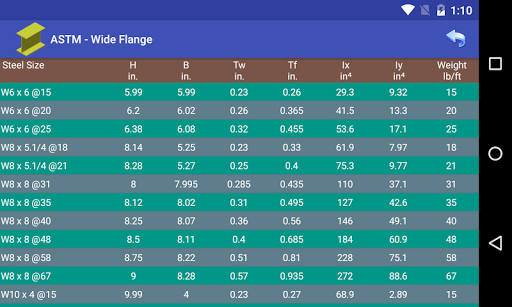

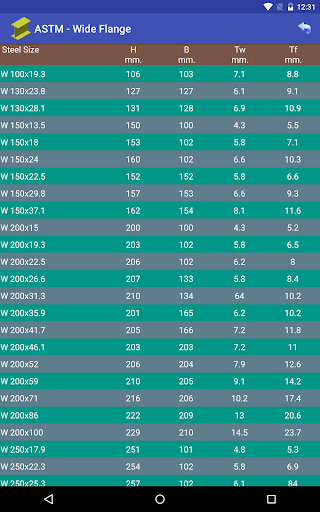

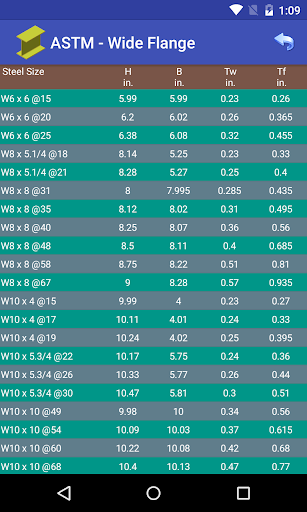

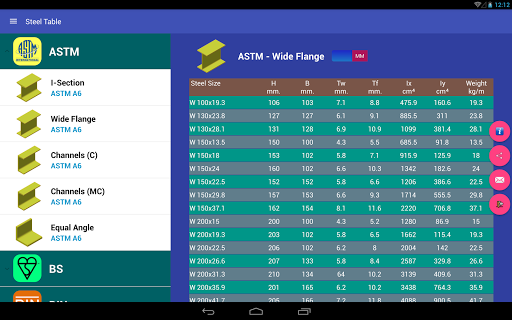

Wide Flange
Channels (C)
Channels (MC)
Equal Angle
BS Steel:
Universal Beam (UB)

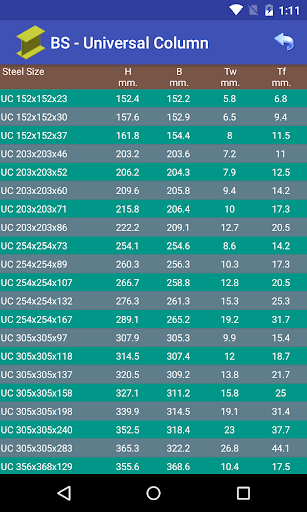

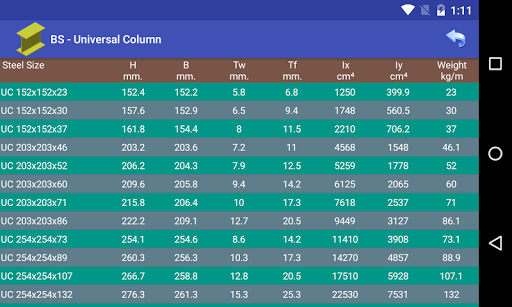

Universal Column (UC)
Joist Beam (J)

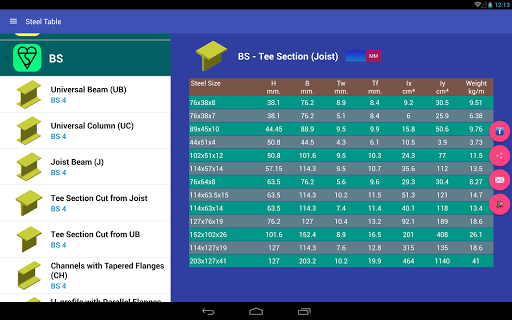

Tee Section Cut from Joist
Tee Section Cut from UB
Channels with Tapered Flanges (CH)

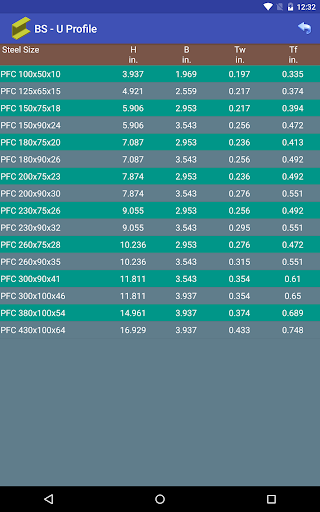

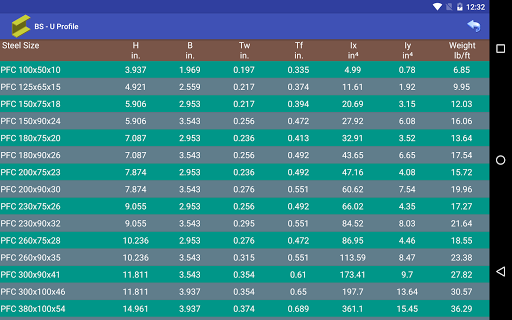

U-Profile with Parallel Flanges (PFC)
Equal Angle
Unequal Angle
Rectangular Hollow (RHS)
Square Hollow (SHS)
JIS Steel:
H-Beam
I-Beam
Tee

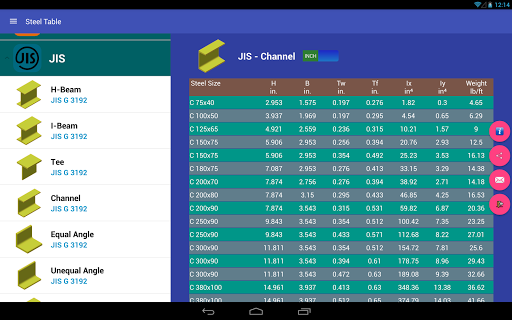

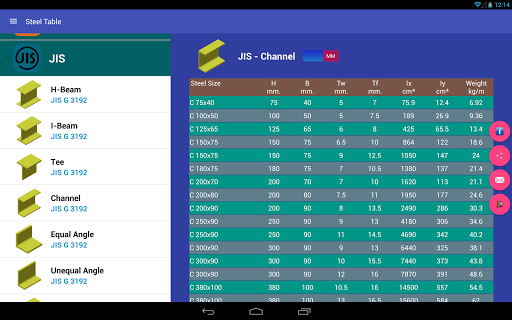

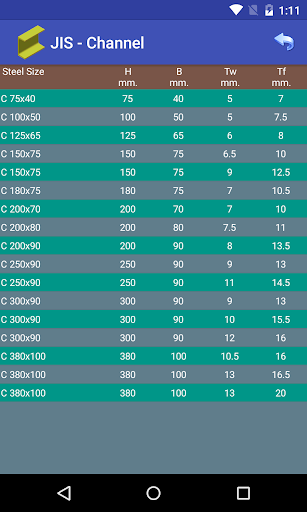

Channel

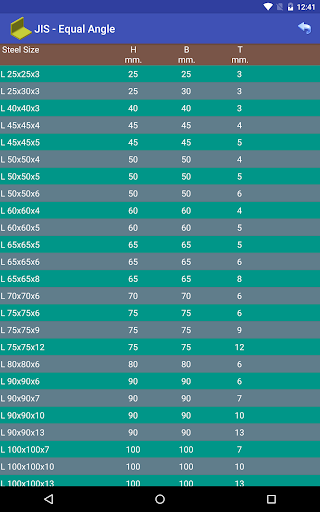

Equal Angle
Unequal Angle
Rectangular Pipe
Square Pipe
DIN Steel:

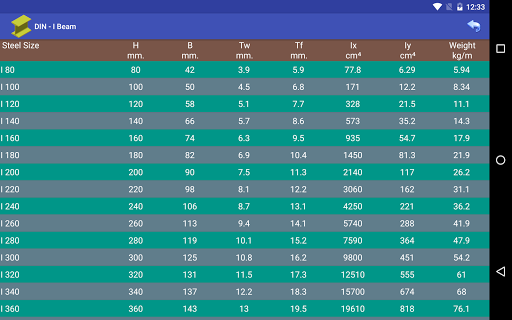

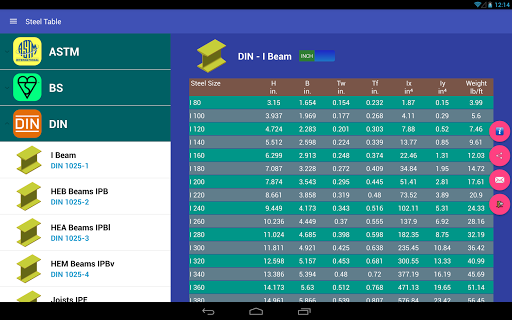

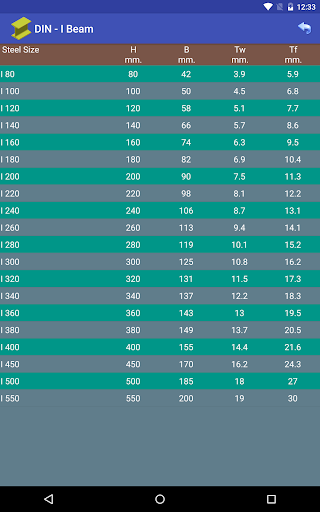

I Beam
IPB
IPBL
IPBV
Joists IPE
Rectangular Tube

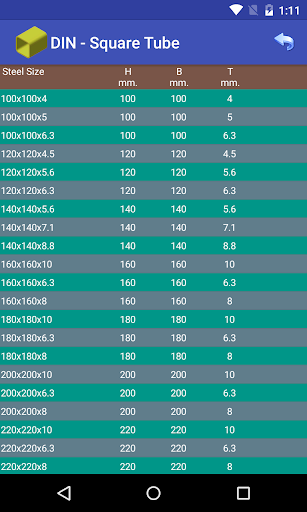

Square Tube
U Channel
- Fixed bug
