Steam Table

Description of Steam Table

A steam table is an app that helps you calculate water's thermodynamics property using the collection of experimental data on temperature, pressure, volume, and the energy contained in water and steam. It is based on a scale of either absolute or relative pressure. Steam Table app helps you find the steam temperature, steam pressure based on the value entered. It also gives the volume of water and steam at various temperatures and pressures, which is useful for calculations in thermodynamics. This app works as your portable steam table to calculate enthalpy and entropy.
Some of the key calculations available in the app are
:
√ Pressure in MegaPascal
√ Temperature in Kelvin
√ Volume in m3/kg
√ Enthalpy (hf) in kJ/kg
√ Entropy (sf) in kJ/kg ⋅ K
√ Isobaric Heat Capacity (Cp) in kJ/kg ⋅ K
√ Isochoric Heat Capacity (Cv) in kJ/kg ⋅ K
√ Vapour Fraction (X) in percentage (%)
√ Density (Rho) in kg/m3
√ Internal Energy (U) in kJ/kg
√ Dynamic Viscosity (Mue) in Pa.s
Some of the key features of the app are
:

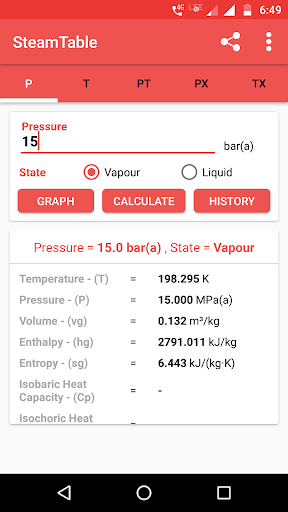

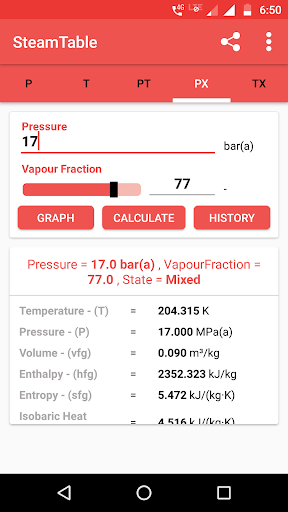

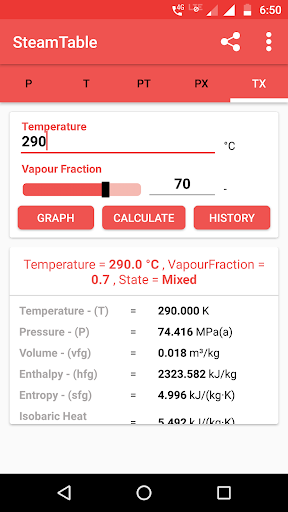

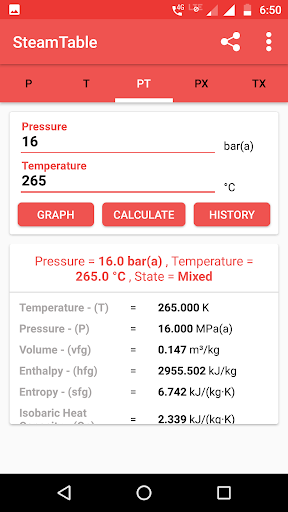

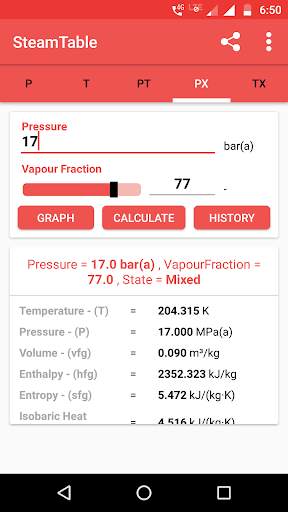

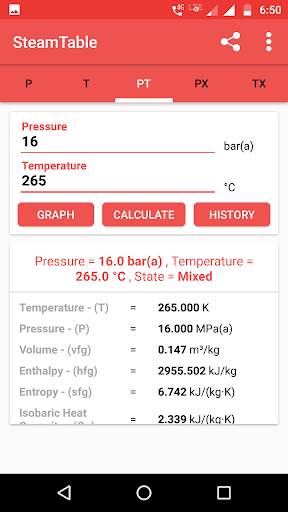

► Find Pressure, Temperature, Vapour Fraction, Enthalpy, Entropy, etc.

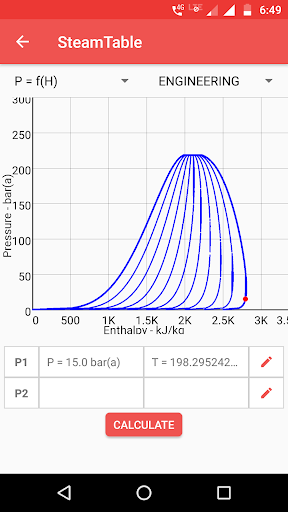

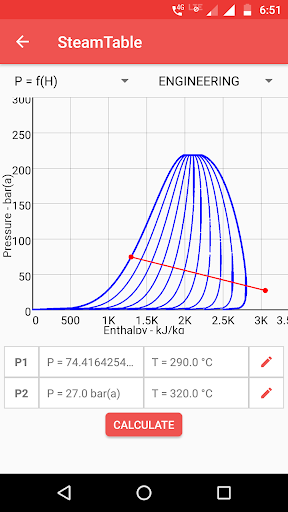

► Generate Mollier Chart using the enthalpy & entropy for the pressure and/or temperature value.
► Generate h-s diagram.
► Change the calculation units like Engineering, SI, and Imperial. Set the number of decimal places required for calculations.
► You can share screenshots of the calculations done with your friends and family members.
------------------------------------------------------------------------------------------------------------------------

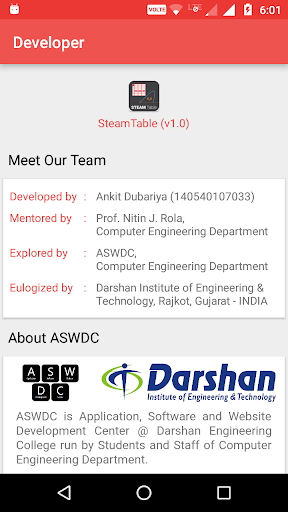

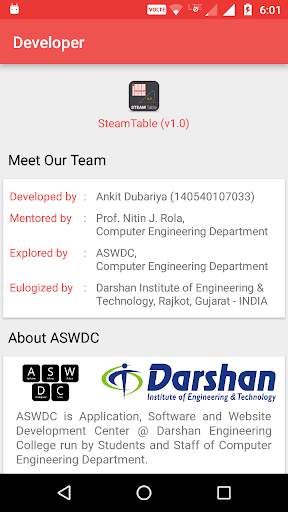

This App is developed at ASWDC by Ankit Dubariya (140540107033), a 6th Sem CE Student. ASWDC is Apps, Software, and Website Development Center @ Darshan Institute of Engineering & Technology, Rajkot run by Students & Staff of Computer Engineering Department.
