Car Gauge Pro (OBD2 Enhance)

3.66.26 for Android

4.3 | 10,000+ Installs | Reviews

OBD Scantech

$8.99

Description of Car Gauge Pro (OBD2 Enhance)

A complete OBD2 Generic package data for all of the OBD2 compliant vehicles and with Enhanced Diagnostic Data for your GM, Ford, Toyota, KIA and Nissan. One of the most powerful and comprehensive scan tool app in the Android Market! This app is specialized for Ford and Nissan which is fully equipped with Enhanced Data and Active Test just like the factory scantool!

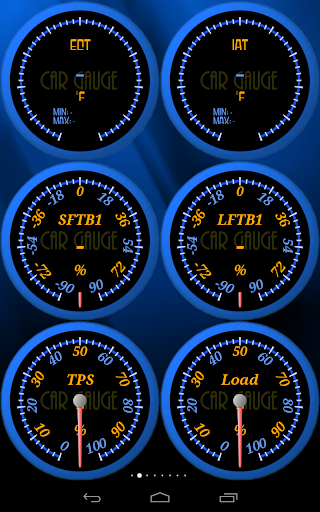

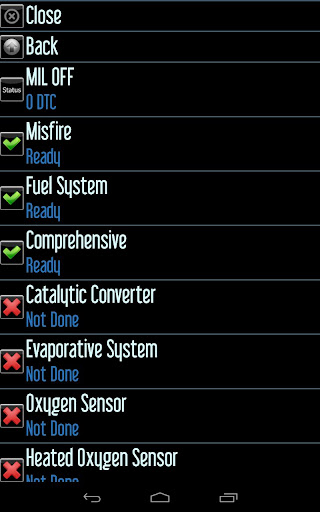

The application will communicate with the vehicle computers at the 16 Pin OBD2 diagnostic connector. Most of the OBD2 connector location should be under the Steering Wheel Compartment. Elm 327 or STN Bluetooth device is required to make this application work. Car Gauge Pro not only can be exciting with Dashboards, it is a professional scan tool. Do you have a check engine light on? Do you want to know the Readiness Status will pass for a Smog Inspection? Do you want to check the functionality of the sensors and determine the status of the Mode 5/6 Emission On-board Test? Car Gauge Pro will show you.

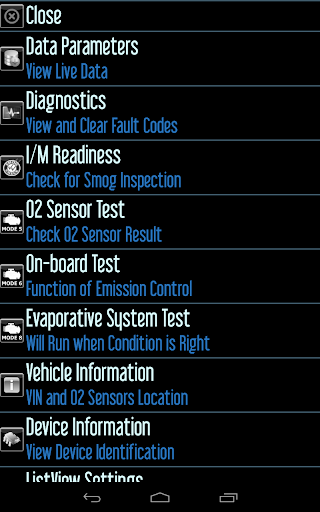

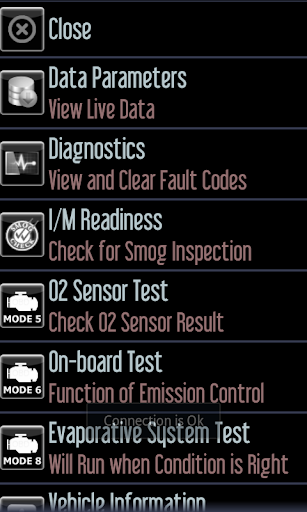

[OBD2 Functions]
All Vehicles
✮ Mode 1 - Data Parameters with 220 PIDS

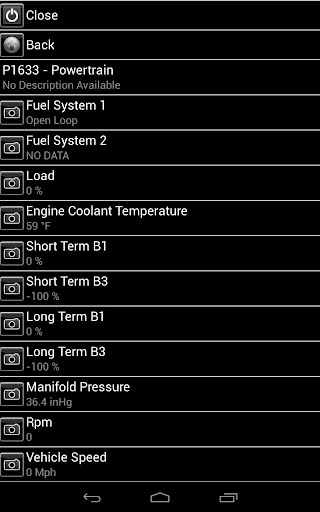

✮ Mode 2 - Freeze Frame Data

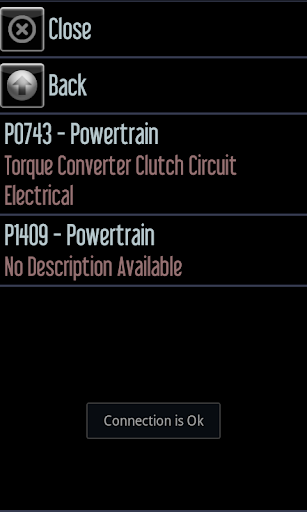

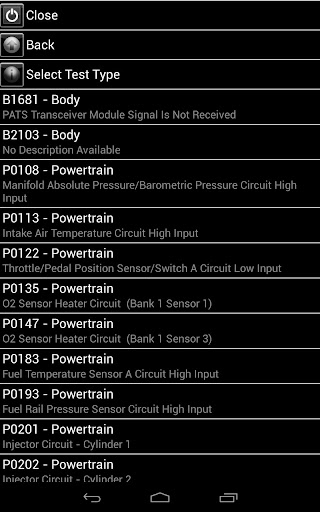

✮ Mode 3 - Check Current Faults
✮ Mode 4 - Clear Faults

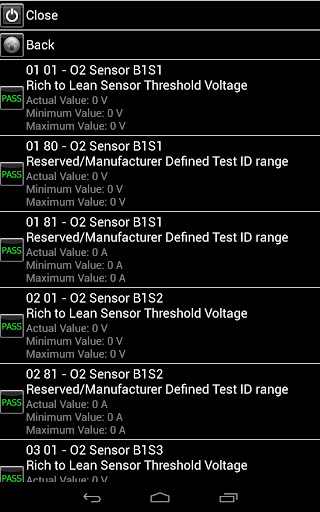

✮ Mode 5 - O2 Sensor Test Result
✮ Mode 6 - Emission Onboard Test Result
✮ Mode 7 - Check Pending Faults
✮ Mode 8 - Enable Evap Test
✮ Mode 9 - Vin, ECU Name, Performance Tracking Data, CALID & etc
✮ Mode A - Check Stored Faults
[Enhanced Functions]
✮ Ford (1996-2008) - Check/Clear Faults, Self Test, KOEO, KOER, and Enhanced Data 1175 PIDS (ISO, PWM, CAN)

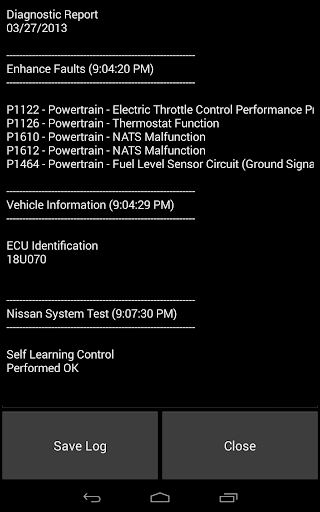

✮ Nissan (2001-2007) - Check/Clear Faults, Self Test, Ignition Timing Adjustment, Idle Rpm Adjustment, Active Test and Enhanced Data 634 PIDS (KWP2000 - ECM, TCM, ABS, BCM)
✮ GM (1996-2007) - Check/Clear Faults, Active Test and Enhanced Data 189 PIDS (VPW Powertrain)
✮ Toyota (2000-2006) - Enhanced Data 150 PIDS (ISO - Powertrain) Read/Clear Faults (KWP2000 Airbag)
✮ Kia (1996-TBD) - Enhanced Data (ISO Powertrain)
✮ Some Models may not support Enhanced Functions
Please note: Some of the Bluetooth Devices are not compatible with the app. App does not support the Mini Elm 327 v2.1! Please test your device with this
ELM 327 Checker by OBD Scantech
Hardware Requirement: Elm 327 or STN Bluetooth Adapter.
Vendors: CHX, OBDII, BAFX and OBDLink MX tested OK.

More

Less

What's New with Car Gauge Pro (OBD2 Enhance) 3.66.26

3.66.25/26
✮ Improved: GM/Ford - Data for Check and Clear All Faults on rotation
3.66.24
✮ Improved: Connection Messaging
