Solve combinational systems up to 8 variables, 8 outputs by Quine-McCluskey

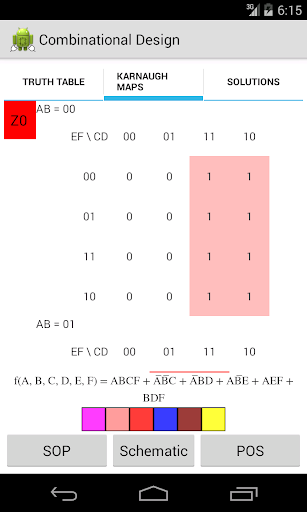

- Display loops on Karnaugh maps
- Display solutions in boolean algebraic form

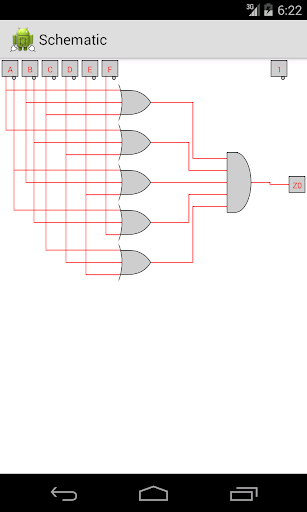

- Plot schematic

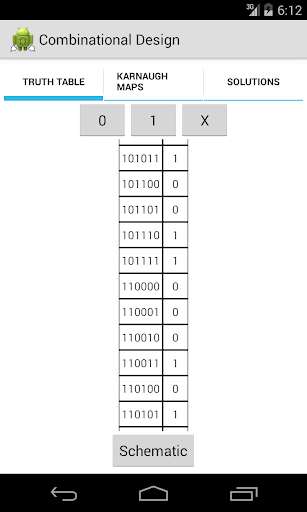

Tip: You can fill rows or columns of the truth table at once by first tapping on their header.
Design sequential systems (synchronous deterministic finite state machines) up to 5 inputs, 5 outputs
- Moore and Mealy automata

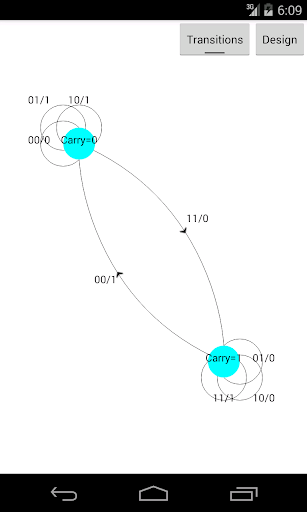

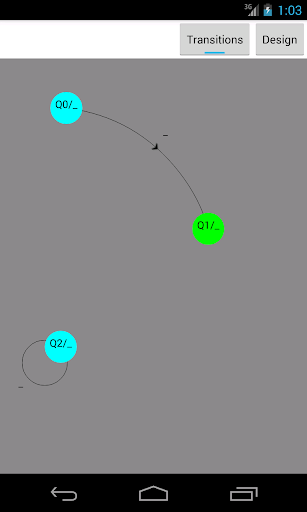

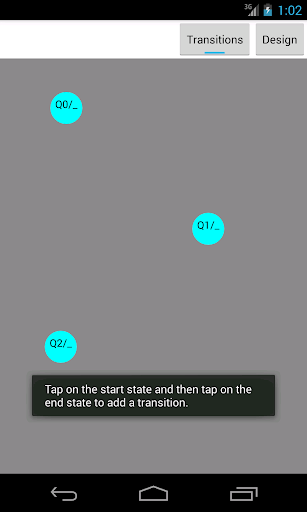

- State diagram capture (long tap to edit states and transitions)

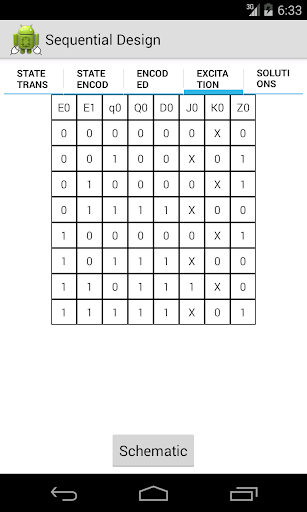

- State codification and flip-flop excitation tables
- Display solutions in boolean algebraic form
- Plot schematic
Tip: You can change the state codification by tapping on the cells of the qi column.
Please, do leave your feedback and suggestions either by email or in the comments below.
- Fixed bug in JK flip-flop transitions (found by K.H. Man).
- Fixed layout bug with Material theme (API 21 ).
If you find any bugs or have any suggestion or feature request, send me an email.
