Penjabaran dari 9apps Wiring Car

Yang membuat saya terkagum-kagum adalah 30,000+ Pengguna mendownload Wiring Car versi terbaru di 9Apps secara gratis! Jika kamu tidak nyaman dengan versi yang lama maka kamu bisa update sekarang. Aplikasi HOT ini di rilis tanggal 2018-01-04. Nikmati bermain dengan fitur baru yang mengagumkan!
Aplikasi ini berisi beberapa kumpulan service manual circuit diagram / wiring diagram untuk mobil-mobil rancangan / rakitan / buatan amerika - eropa, aplikasi ini dapat membantu anda dalam memperbaiki wiring mobil dan menambah wawasan khusus nya para teknisi spesialis mobil mewah (amerika - eropa).
Berikut uraian nya :
1. STARTING & CHARGING SYSTEM
- BATTERY, STARTER MOTOR, GENERATOR & NSBU SWITCH CIRCUIT : (DIESEL / GASOLINE)
- IGNITION SWITCH CIRCUIT
- POWER MODE CIRCUIT
2. ECM (ENGINE CONTROL MODULE)
- BATTERY POWER SUPPLY, GROUND, EI SYSTEM, GENERATOR & CKP SENSOR CIRCUIT
- FUEL PUMP, INJECTOR & HEATED O2 SENSOR CIRCUIT
- ETC MODULE, SENSOR (MAP, ECT, KNOCK, ACP & ACCELERATOR PEDAL), OIL PRESSURE SWITCH & LEGR CIRCUIT
- EVAP CANISTER PURGE SOLENOID, SENSOR (CMP,ACCELERATOR PEDAL,FUEL LEVEL) & CLUTCH SWITCH CIRCUIT
- BRAKE SWITCH, BACK UP SWITCH, NSBU SWITCH CIRCUIT
- DLC (DATA LINK CONNECTOR) CIRCUIT
3. ECM (ENGINE CONTROL MODULE) : (2.0 DIESEL)
- BATTERY POWER SUPPLY, GROUND, GLOW PLUG CONTROL UNIT, FUEL HEATER, GENERATOR &
CKP SENSOR CIRCUIT
- INJECTOR, FUEL PUMP & SENSOR (EXHAUST GAS TEMPERATURE, FUEL TEMPERATURE)
CIRCUIT
- SENSOR (WIF, MAF/IAT, DPF PRESSURE, RAIL PRESSURE, ECT,ACP), SWITCH (OIL PRESSURE),
RAIL PRESSURE CONTROL VALVE & FUEL METERING UNIT CIRCUIT
- SENSOR (ACCELERATOR PEDAL, BOOST PRESSURE, FUEL LEVEL,CMP), ACTUATOR
(THROTTLE PLATE, BOOST PRESSURE), CLUTCH SWITCH & EGR VALVE CIRCUIT
- BRAKE SWITCH, BACK UP SWITCH & NSBU SWITCH CIRCUIT
- DLC (DATA LINK CONNECTOR) CIRCUIT
4. TCM (TRANSMISSION CONTROL MODULE)
- POWER SUPPLY, GROUND, BRAKE SWITCH & SOLENOID VALVE CIRCUIT
- SENSOR (INPUT SPEED,OUTPUT SPEED), NSBU SWITCH & HIGH SPEED CAN CIRCUIT
- GEAR SHIFT LEVER, WINTER MODE SWITCH & CLUSTER CIRCUIT
5. BCM (BODY CONTROL MODULE)
- POWER SUPPLY, GROUND, IGNITION SWITCH CIRCUIT
- POWER MODE, RAIN SENSOR & REAR WIPER SWITCH CIRCUIT
- HEAD LAMP, ILLUMINATION, FRONT/REAR FOG, BRAKE SWITCH & DIMMER CONTROL CIRCUIT
- INTERIOR LAMP, BACK UP LAMP, GEAR SHIFT LEVEL, SWITCH (WINTER MODE, CRUISE, HAZARD,
TURN SIGNAL) CIRCUIT
- FRONT WIPER, LIFT GATE WIPER, RAIN SENSOR & EVAP CORE TEMP. SENSOR CIRCUIT
- DOOR LOCK/UNLOCK, HORN, DOOR LATCH, PARKING ASSIST & SWITCH (PARK BRAKE, HOOD OPEN, DOOR LOCK) CIRCUIT
- POWER WINDOW, LIFT GATE GLASS, COUPLING CONTROL MODULE, ESP SWITCH & MANUAL A/C CONTROLLER CIRCUIT
6. AIR CONDITIONER
- AIR CONDITIONER CONTROL SWITCH & BLOWER MOTOR CIRCUIT
- INTAKE MOTOR, MODE MOTOR & EVAP CORE TEMP. SENSOR CIRCUIT
7. FATC (FULL AUTOMATIC TEMPERATURE CONTROL)
- MOTOR (BLOWER, INTAKE, MODE, TEMPERATURE) & POWER MODULE CIRCUIT
- SENSOR (AQS, DUCT TEMP., EVAP CORE TEMP., INCAR, COMBI), ECM & BCM CIRCUIT
8. AIR CONDITIONER COMPRESSOR CIRCUIT

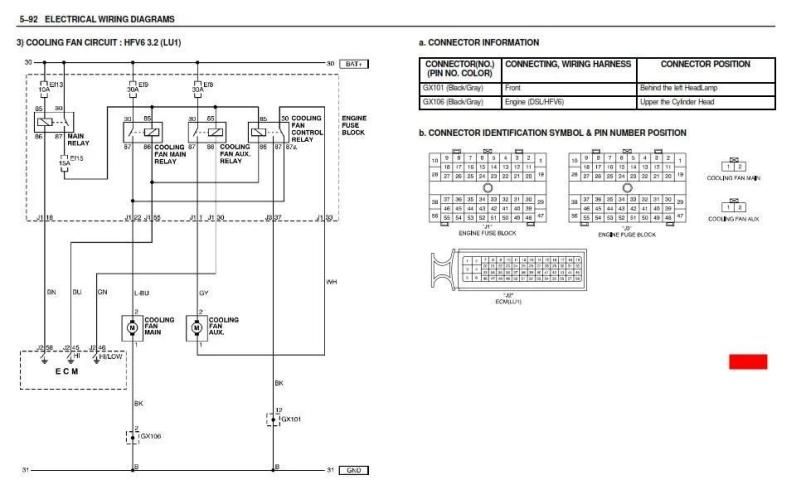

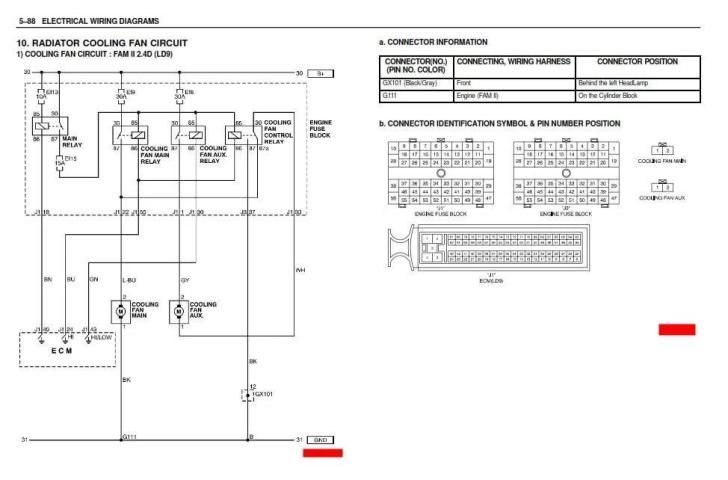

9. RADIATOR COOLING FAN CIRCUIT

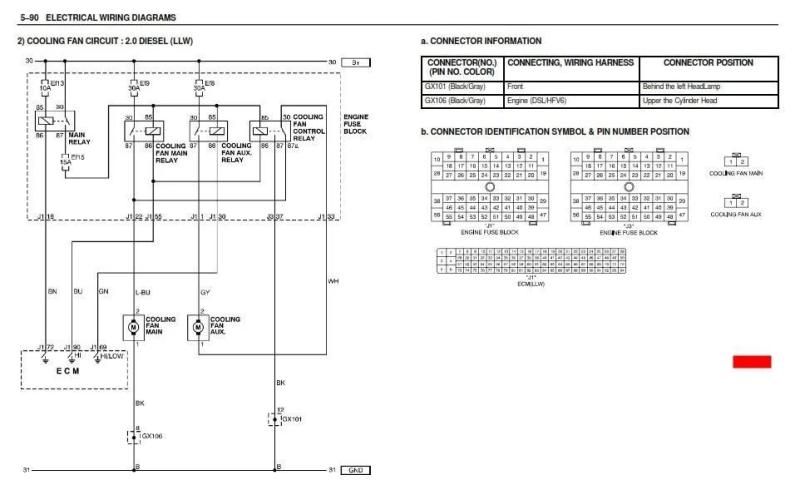

- COOLING FAN CIRCUIT : DIESEL / GASOLINE
10. PTC–HEATER CIRCUIT : DIESEL
11. HEAD LAMP CIRCUIT
- W/O HEAD LAMP LEVELING
- W/ HEAD LAMP LEVELING
12. HEAD LAMP SWITCH CIRCUIT
- W/O AUTO LIGHT
- W/ AUTO LIGHT
13. ILLUMINATION CIRCUIT
- ILLUMINATION, DIMMER CONTROL SWITCH & HEATING MAT SWITCH CIRCUIT
- LAMP (LICENSE PLATE & FRONT/REAR PARKING) CIRCUIT
14. FRONT & REAR FOG LAMP CIRCUIT
15. HAZARD & TURN SIGNAL LAMP CIRCUIT
16. STOP LAMP, CENTER HIGH MOUNT STOP LAMP (CHMSL), BACK UP LAMP & ECM MIRROR
CIRCUIT
17. INTERIOR LAMP CIRCUIT
- LAMPS (MAP, ROOM, DOOR STEP, SUNVISOR, LUGGAGE, GLOVE BOX, KEY HOLE) CIRCUIT
18. WIPER CIRCUIT
- FRONT WIPER CIRCUIT
- LIFT GATE WIPER CIRCUIT & HEAD LAMP WASHER CIRCUIT
Berikut adalah kata kunci yang mungkin anda cari : electrical wiring car harness, mobil wiring listrik, diagram wiring mobil, wiring diagram mobil, wiring diagram mobil amerika, japanese car stereo wiring diagram, electrical wiring wiring diagram, peta of wiring diagram, wiring diagram car, modifikasi mobil, dan lain sebagainya.
Jangan lupa berikan komentar serta tambahkan bintang dalam setiap aplikasi-aplikasi kami, sebagai bahan evaluasi kami untuk meningkatkan aplikasi kami agar menjadi lebih baik dan menarik lagi.
