& logics is a digital logic circuit simulator with an integrated scheme editor and a waveform browser.
Currently available components: buffer, inverter, and, nand, or, nor, exor, exnor logic gates, tri-state buffer and inverter, D latch, edge triggered D, JK flip flops, monostable, multiplexer, demultiplexer, LED, decimal display, hexadecimal display, toggle button, push button, constant high and low generator, probes.

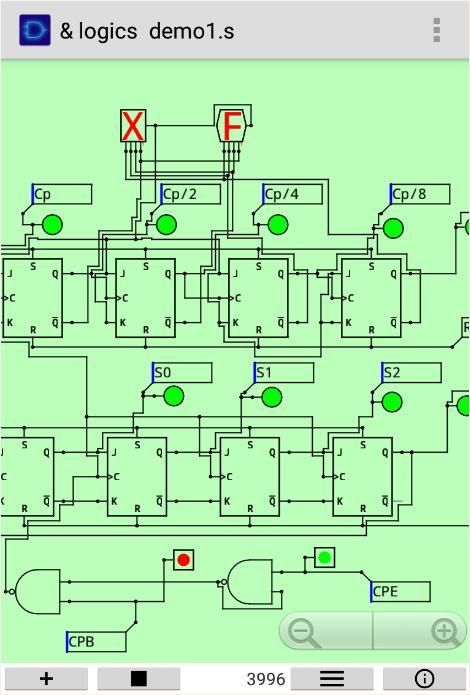

Scheme editor features: context sensitive menu, autorouter, 7 steps undo/redo, labels for far connections, automatic enlarge on selection, cloning, rotating, locked and unlocked move, move to center.
The simulator works with three logical levels and three impedance values. They are low, undefined and high.The simulator detects temporary short circuit conditions, spikes and flip flop setup, hold, recovery, resume time violations.

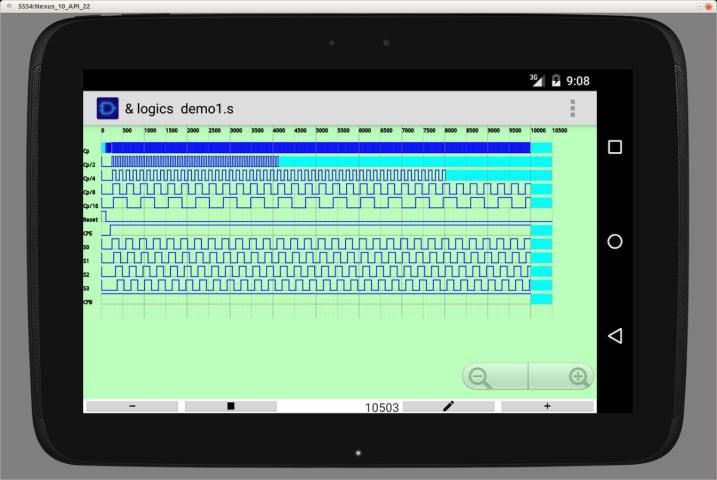

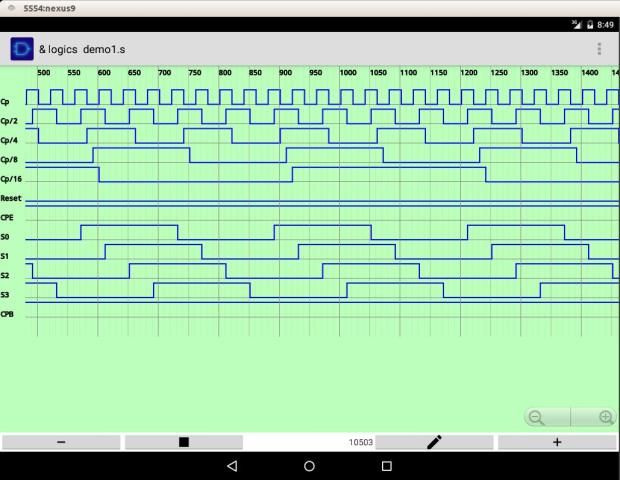

The waveform browser is a virtual digital oscilloscope. The current features are: start, stop time, buffer length setting, time shift and zoom, display of logical low, high, and undefined states.

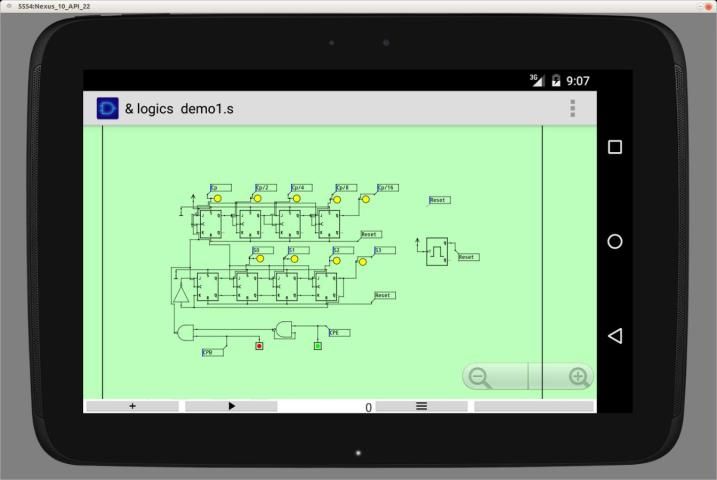

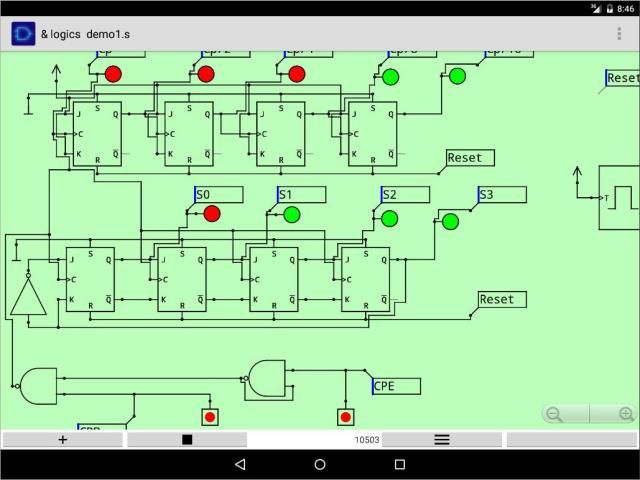

The program comes with a built in demo circuit which helps you to get started quickly. The demo circuit contains a counter and a shift register which you can easily simulate and then analyse its operation and timing.
http://www.hexastyle.com/home/andlogics/first-3-steps
Improved device and wire selection.
Faster oscilloscope.
Basic manual wire editing capability.
Improved auto router,
New diagnostic features: spike detection, flip flop setup, hold, resume, recovery time check.
Orientation setup.
Wires can display logic levels. Use with caution because this feature is very time consuming.
