The Air Screener is a mathematical model based on the Gaussian distribution and analytical techniques. The model is compatible to identify the "worst-case" operating scenario of point source pollutant and to indicate a maximum ground-level concentrations of the operating scenario.
The App can be used to determine the appropriate location, stack height and emission parameters of single source for planning and design stage of a new project development.
Features
• Input data preparation is easy and simple
• Simulate single point source and simple terrain
• Plot model results on XY graphics

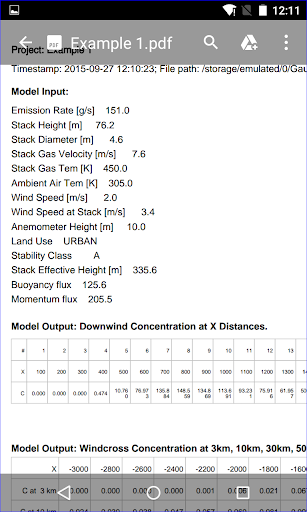

• Export model input and output results to PDF file
• Save input data in scenario file

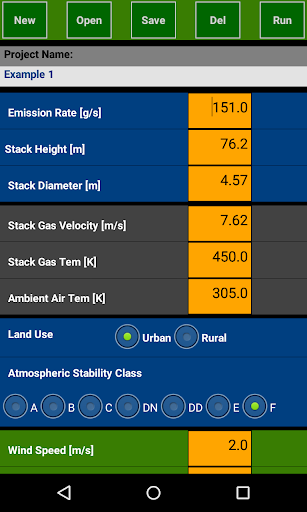

Model Input
• Emission Rate [g/s]
• Stack Height [m]
• Stack Diameter [m]
• Stack Gas Velocity [m/s]
• Stack Gas Tem [K]
• Ambient Air Tem [K]
• Wind Speed [m/s]
Buttons
• New
Start new scenario
• Open
Load a scenario file
• Save
Keep scenario into file
• Del
Remove saved data

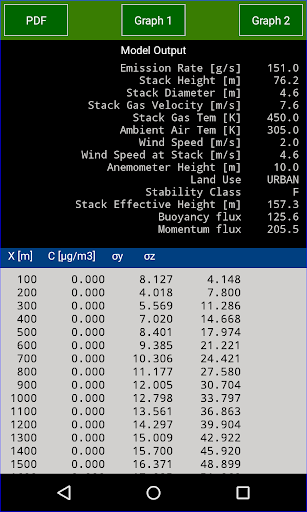

• Run
Start model simulation

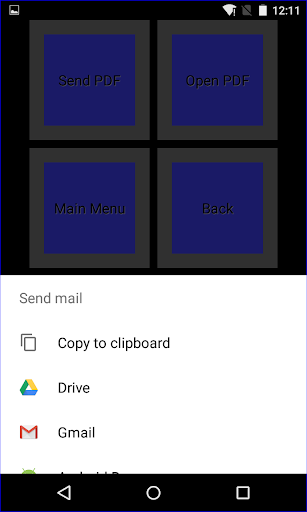

• PDF
Export results into PDF format

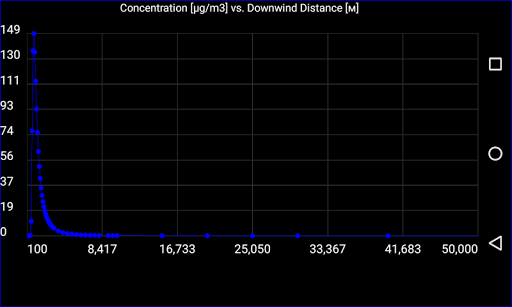

• Graph 1 Plot concentrations along downwind
• Graph 2 Plot crosswind concentration profiles
